Name：PLC Bare Fiber Type Splitter

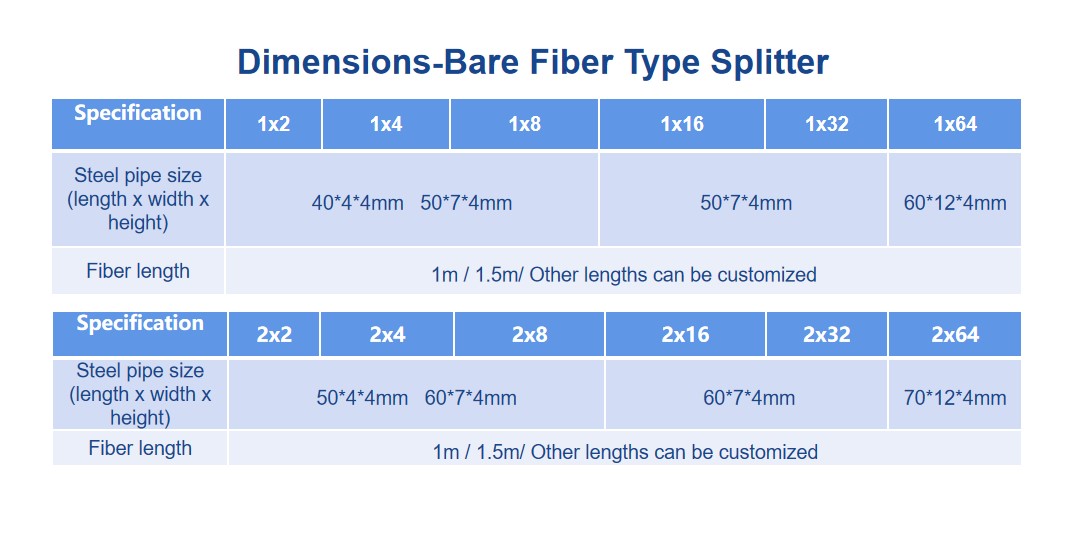

Size：4x7x50mm

Model：1x16

Fiber length：1.5m

Applications：Installed in various types of test meters and WDM systems.

Product Structure:

The PLC optical splitter is an optical waveguide branching device fabricated using semiconductor technology. Branching is completed directly on the chip, with the capability to realize up to 2x64 branches on a single chip. Subsequently, the multi-channel fiber arrays at both the input and output ends of the chip are coupled and packaged using chip coupling and packaging technology.

Product Model:

Regular models include 1x2, 1x4, 1x8, 1x16, 1x32, 1x64, and 1x128, as well as 2x2, 2x4, 2x8, 2x16, 2x32, 2x64, and 2x128 models. Special models include 1x3, 1x5, 1x6, 1x7, 1x9, 1x12, and 1x24 models.

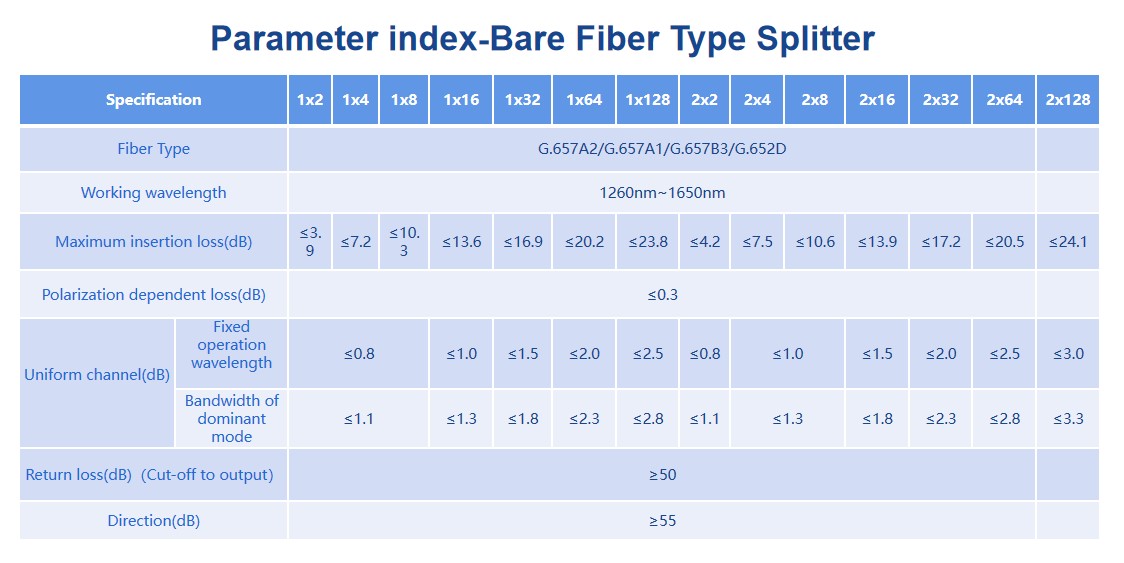

Optical Features:

It offers very low insertion loss and polarization-dependent loss, ensuring good uniformity control and excellent environmental stability.

Product Application:

Widely used in Fiber to the Home (FTTH) including Ethernet Passive Optical Network (EPON), fiber optic communication systems, local loops, Passive Optical Networks (PON), fiber optic test equipment, fiber optic sensors, fiber optic CATV, and Local Area Networks (LAN).
